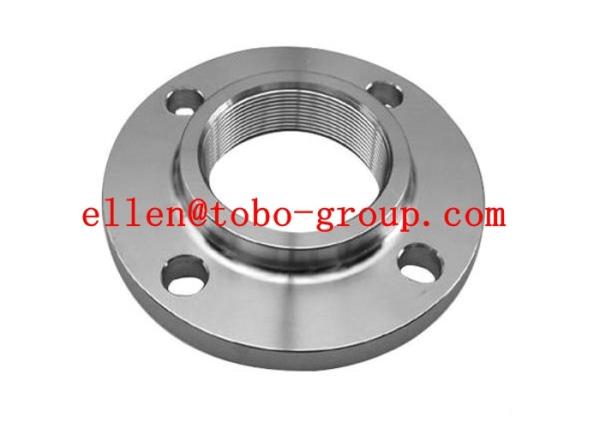

TOBO STEEL Group Forged Steel Flange ASTM A182 F53 Threaded Flange CL600 DN100

Name: TOBO STEEL Group Forged Steel Flange ASTM A182 F53 Threaded Flange CL600 DN100
Brand: TOBO
Price: 1 USD

Place of Origin : China

Brand Name : TOBO

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Model Number : ASTM A182 F53

MOQ : 1PC

Price : 1USD

Packaging Details : PLY-WOODEN CASE OR PALLET

Delivery Time : 10-100 days depending on quantity

Payment Terms : T/T or Western Union or LC

Supply Ability : 3,0000pcs per month

Contact Now

Forged Steel Flange ASTM A182 F53 Threaded Flange CL600 DN100

Brand Name:	TOBO
Model Number:	ASTM A182 F53
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin:	China

Product Name	Forged Steel Flange	Product Type	Threaded flange
Size	1/2"-48"	Thickness:	SCH5~SCH160
Welding Line Type	EFW	Application	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Standard	ASME B16.5, ANSI B16.5, Etc	surface	Transparent oil, rust-proof black oil or hot galvanized

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Payment Terms:	T/T or Western Union or LC
Supply Ability:	3,0000pcs per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	PLY-WOODEN CASE OR PALLET

Forged Steel Flange ASTM A182 F53 Threaded Flange CL600 DN100

Quick Details

Size: 4"
Material: Super Duplex Stainless Steel 2507 (F53), etc
Place of Origin: Shanghai, China (Mainland)
Brand Name:TOBO
Standard or Nonstandard: Standard
Technics: Forged
Standard: ASME B16.5, ANSI B16.5, Etc
Type: F53 Threaded Flange

Packaging & Delive

Packaging Details:	Seaworthy plywood case or as customer requests
Delivery Detail:	2 - 10 days after receiving the deposit

Specfication

A182 F53 Threaded Flange
1. Material: Super Duplex Stainless Steel 2507 (F53), etc
2. Size: 4" (DN100)
3. Standard: ASME B16.5, ANSI B16.5, etc
4. Pressure: 150#, 300#, 600#, etc

About Super Duplex Stainless Steel 2507 (F53)

2507 is the most common Super Duplex Stainless Steel which contains 24% chromium
and a minimum of 3% molybdenum. Please refer to the chemical composition and mechanic
properties tables below.

Chemical Composition

GRADE	C≤	Mn≤	Si≤	S≤	P≤	Cr≤	Ni	Mo	Cu≤	N
S32750 (2507) 00Cr25Ni7Mo4N	0.03	1.20	0.8	0.020	0.035	24.0/26.0	6.0/8.0	3.0/5.0	0.50	0.24/0.32

Type	A182 F53 Threaded Flange
Size	4"
Standards	SO, WN, SW, TH, LJ, BL, PL, etc
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

F53 Threaded Flange this kind of flange is in the socket of flat welding flange pipe thread tube and pipe connection, the flange material does not necessarily consistent with pipes. One of the flange is fitting. So, this kind of flange. Therefore has been widely used, the thickness of the section of the high neck through the high neck gradually transition to the wall thickness, thus increasing the intensity of f53 threaded flange.
APPLICATIONS :
1. petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;

China TOBO STEEL Group Forged Steel Flange ASTM A182 F53 Threaded Flange CL600 DN100 factory
